OZ Lifting Electric Builders Hoist, 1000 lb with 90ft lift

OZ Lifting Electric Builders Hoist, 1000 lb with 90ft lift

by OZ Lifting
Save 5%
$2,287.48
$2,173.11
SKU OBH1000

Seen this product cheaper elsewhere? We’ll match the price!

Shipping for this product is calculated at Checkout

Ships in 2-3 business days

Need to issue a PO# or RFQ? Click here, our team can help

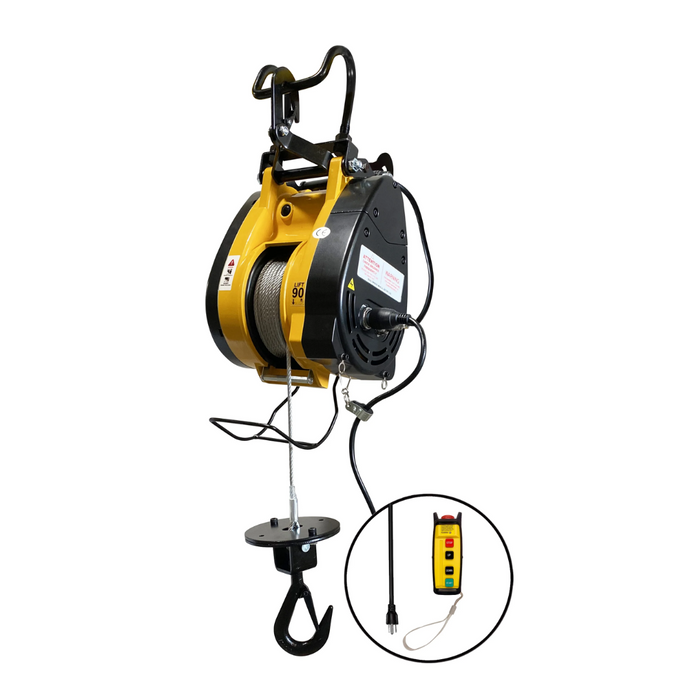

The Electric Builder’s Hoist by OZ Lifting Products combines power with flexibility, offering a substantial 1000 lb lifting capacity. This advanced hoist can be operated using either a wired pendant or a user-friendly wireless remote, providing maximum convenience and control. With a 2 1/2 hp motor and a 360-degree swivel hook, it ensures efficient and versatile lifting operations. The compact design, dynamic braking system, and built-in upper and lower limit switches enhance safety and stability. Ideal for industrial settings, the OBHW1000 runs on a standard 115V power source and holds CE and FCC certifications, guaranteeing exceptional performance and safety.

  • Lightweight and compact design for convenient mounting
  • Automatic shut-off when rope reaches limit arm
  • Dynamic and mechanical brake provides instant, safe braking
  • Upper and lower limit switches for additional safety
  • Sensor arm for motor shut-off to prevent reverse winding
  • Galvanized wire rope with 360-degree weighted swivel hook includes safety latch
  • Quick-release pendant and power cords
  • Standard 115V power source-compatible
  • Individual serial number and test certificate
  • Choose between a standard corded pendant (OBH) for easy operation or a wireless remote (OBHW) for added versatility and freedom of movement
Logo

Seen this product cheaper elsewhere? We’ll match the price!

Shipping for this product is calculated at Checkout

Ships in 2-3 business days

Need to issue a PO# or RFQ? Click here, our team can help

Specification Video Downloads FAQs

Make sure you have the right set up for your Electric Builders Hoist

Mounting Arm

OBH230 - 1000lb capacity builder's hoist scaffold pipe mounting bracket arm

OBH230-WALL - 1000lb capacity builder's hoist wall mounting bracket arm



Clamp

OBH-CLAMP - 1000lb capacity builder's hoist beam clamp



Hanger

OBH-HANGER - 500lb & 1000lb builder's hoist spare hanger



Trolley

OZ05PBTA-OBH - 1000lb capacity builder's hoist manual beam trolley with hanger

OZGBT-OBH - 1000lb capacity builder's hoist geared beam manual trolley with hanger



Hoist Bucket

OZBAG1 - Web handle canvas hoist bucket with top rigging  12.5" x 17"

OZBAG2 - Web handle canvas hoist bucket with top rigging 16" x 20"

OZBAG3 - Web handle canvas hoist bucket with top rigging 12.5" x 17"

Download the Operators Manual 500lb - OBH500



Download the Operators Manual 1000lb - OBH1000

1. What is the capacity of this hoist? Available in 0.25 ton and 0.5 ton capacities.

2. Why is it called a builders hoist? This name was given because of how common it is in the building environment. It is often called a wire rope hoist.

3. Can it be used elsewhere? Yes: it is designed for use on commercial building sites and in various construction workplaces, warehouses, storage facilities and factories.

4. Why is it suited to building and other environments? Its lightweight and compact design helps convenient mounting. The product continues to gain popularity anywhere the user needs to move their load quickly and safely. Note that the hoist can be rigged outdoors, but it is not rated to be used in the rain or wet environments.

5. Can I operate the hoist using standard domestic power supply? Yes.

6. How far does the hook rotate? A 360-degree weighted hook is fitted with a safety latch. The hook gives the user the added ability of better positioning the load when lowering.

7. What can you tell me about the wire rope? The hoist features galvanized wire rope.

8. Why would I choose the wired versus wireless version? This decision is often made on price but there are many applications where it isn’t necessary for the operator to distance themselves from the hook.

9. Does the hoist come with a mount? No, but two are available:

  1. Scaffold pipe
  2. Wall mount
