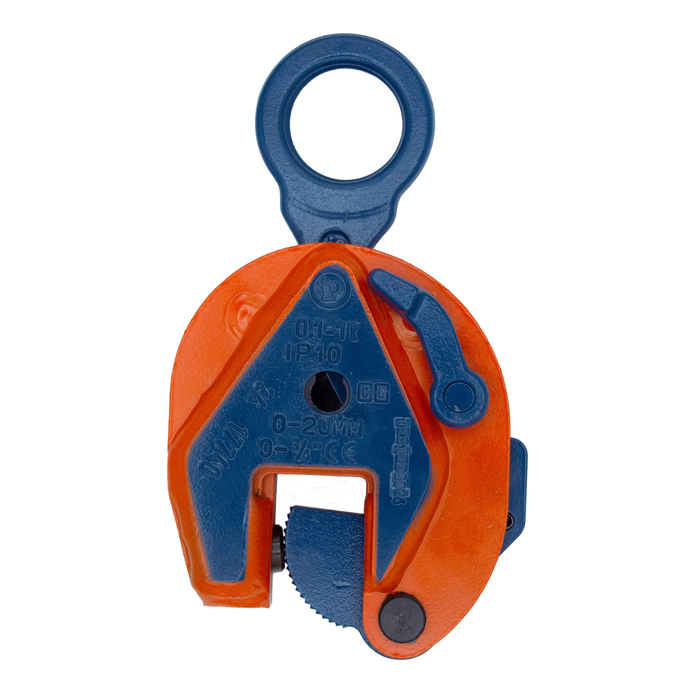

Crosby IP Model IP10 Vertical Lifting Plate Clamp, Fixed Eye, 2 ton capacity
by Crosby
$1,436.00
SKU 2701676
Seen this product cheaper elsewhere? We’ll match the price!
Eligible for FREE SHIPPING - typically ships in 2-3 working days
- Available in a wide variety of capacities and jaw openings.
- Higher Working Load Limits available upon request.
- Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
- Individually Proof Tested to 2 times the Working Load Limit with certification.
- Crosby IP logo, Working Load Limit and jaw opening permanently stamped on body.
- Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual and test certificate included with each clamp.
- Available in a variety of styles:
- IP10 - Standard clamp for materials with a surface hardness to 363HV10 (345 HB).
- IP10J - Larger jaw opening.
- IP10S - For use with stainless steel material.
- IP10H - For use with materials with a surface hardness to 472HV10 (450 HB).
- Full 180° turning range for material transfer, turning or moving.
- Lock open, lock closed ability with latch for pretension on material and then release of material.
- Maintenance and repair kits are available.
- Minimum WLL is 5% of maximum WLL for .5t IP10 only.
- Minimum WLL is 10% of maximum WLL for all other IP10, IP10J, IP10S, IP10H clamps.
- For plate surface hardness till 279HV10, only 5% of minimum WLL is needed.
- Temperature range -40 °F (-40 °C) to +212 °F (+100 °C)
