Caldwell Adjustable Spreader Beam, 2t- 10t with rigging

Name: Caldwell Adjustable Spreader Beam, 2t- 10t with rigging
Brand: Caldwell Group
SKU: 32-2-4/6
Price: 2083.0 USD
Availability: InStock

by Caldwell Group

$2,083.00

SKU 32-2-4/6

Capacity (t) | Spread (ft) Min/Max | Model

Quantity

Seen this product cheaper elsewhere? We’ll match the price!

Typically ships in 2-3 days

Need to issue a PO# or RFQ? Click here, our team can help

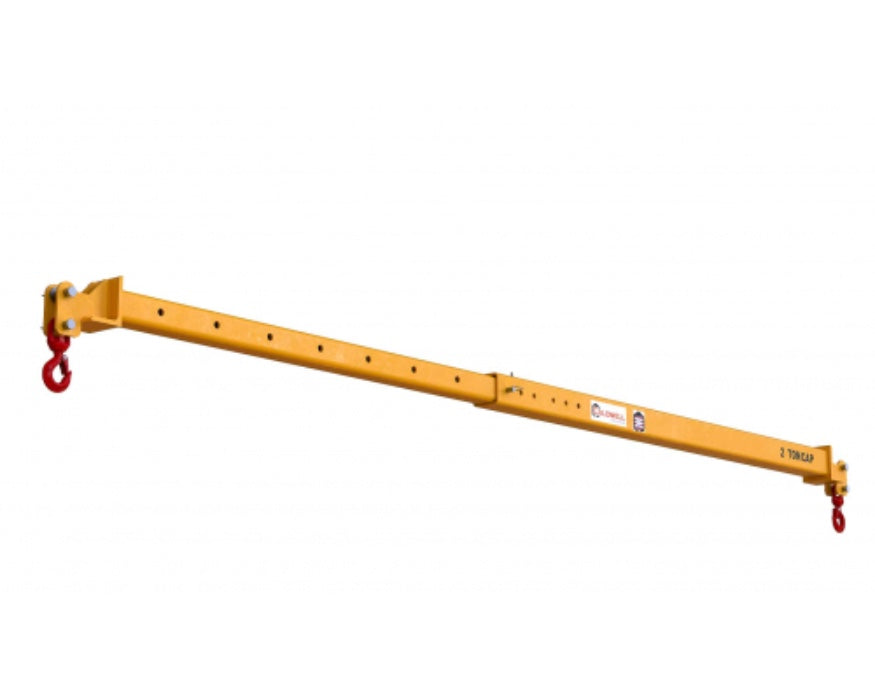

This Caldwell Adjustable Spreader Beam is ideal for outdoor applications and where headroom is not limited.

The beam adds stability to the lift and the telescopic spread comes as standard.

A wide range of sizes and capacities are available, ranging from 2 ton to 10 ton. A versatile lifting solution for handling many different size loads. ****SELECT MODELS Supplied with chain sling for direct connection to crane hook.

Lifting beams, meanwhile, are typically designed for a bending moment versus the spreader beam that incorporates top rigging and is designed for a compressive load.

Complies with ASME standards.

For features and options please view the datasheet

Seen this product cheaper elsewhere? We’ll match the price!

Typically ships in 2-3 days

Need to issue a PO# or RFQ? Click here, our team can help

About Specification

PRODUCT FEATURES:

Ideal where headroom is not limited.
Adds stability to lift.
Telescopic spread standard.
Spread adjusts in 1" increments.
Available with standard chain or wire rope rigging.
Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
Wide range of additional sizes and capacities available.
Complies with ASME standards.

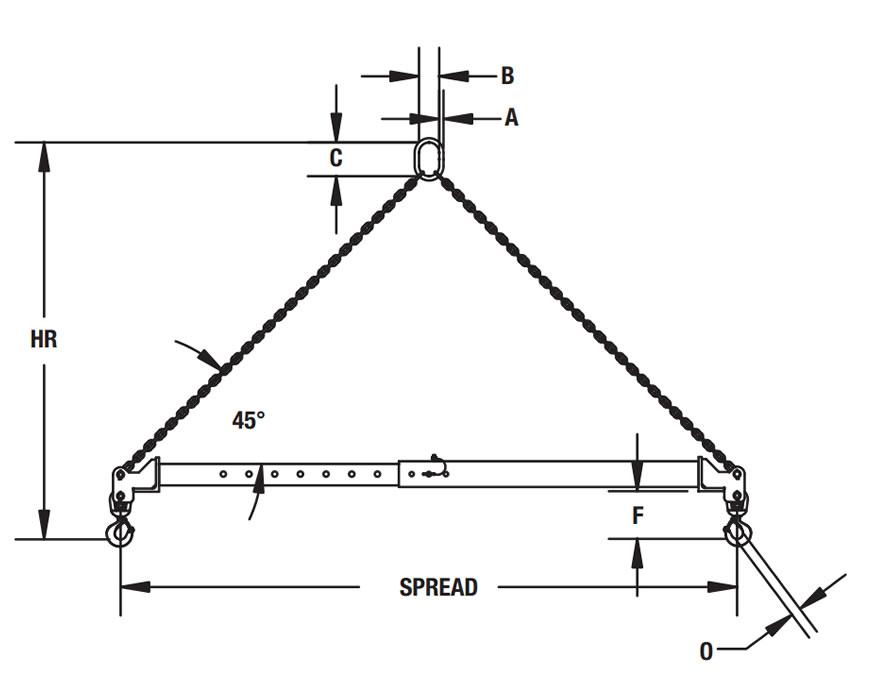

Capacity	Model	Spread (ft) Min/Max	HR Headroom Min./Max w/chain (in)	Weight Beam & Hooks (lb)	A Oblong Dia (In)	B Oblong Width (In)	C Oblong Height (In)	F - Hook To Beam Bottom Dia (In)	O - Hook Opening w/latch (In)	Chain Rigging Weight (lb)
2	32-2-4/6 32-2-6/10 32-2-8/14	4 / 6 6 / 10 8 / 14	48/57 72/88 96/113	70 85 175	1/2	2.36	3.94	5.5	0.97	9 13 17
5	32-5-4/6 32-5-6/10 32-5-8/14	4 / 6 6 / 10 8 / 14	55/64 79/95 102/126	105 160 205	1	5.38	7.09	8.4	1.41	34 47 61
10	32-10-4/6 32-10-6/10 32-10-8/14	4 / 6 6 / 10 8 / 14	60/69 74/111 108/132	130 175 460	1-1/4	5.71	10.38	10.6	1.78	49 69 88
